Crawler Spider Boom Lift
The Gradin crawler spider boom lift comes in five models, with platform heights ranging from 8 to 16 meters. These spider boom lifts have sturdy rubber tracks, allowing workers to traverse various terrains, particularly uneven ground, soft grass, or muddy areas.
- Outrigger protection system: The outriggers have grounding indicators to prevent empty legs and improve safety.
- One-key leveling of the body: The outriggers can achieve automatic leveling and improve work efficiency.
- Load protection system: Boom lift has a built-in load protection system.It can automatically control the boom’s length and angle to improve operators’ safety.
- Three sets of power systems: Equipped with diesel engine system, electric system, and emergency hand pump system,it can provide power for all actions.
Products(Straight Arm & Articulating Arm)

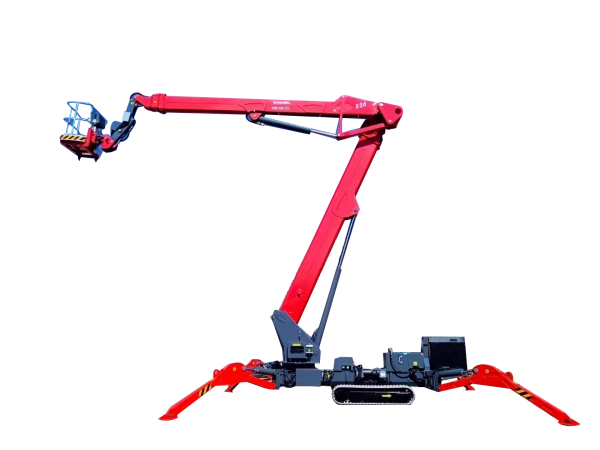

T series(Straight Arm)：
T23 Crawler Spider Boom Lift
T26 Crawler Spider Boom Lift
T30 Crawler Spider Boom Lift
T36 Crawler Spider Boom Lift
T42 Crawler Spider Boom Lift
T50 Crawler Spider Boom Lift

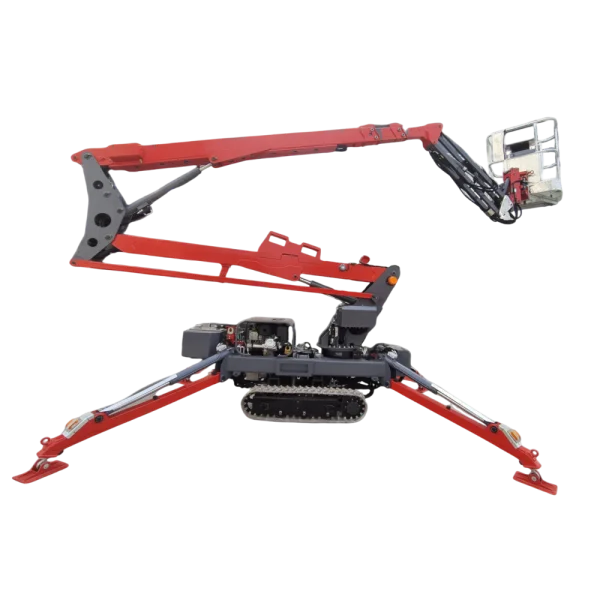

X series(Articulating Arm)：
X16 Crawler Spider Boom Lift
X18 Crawler Spider Boom Lift
X21 Crawler Spider Boom Lift
X24 Crawler Spider Boom Lift
X27 Crawler Spider Boom Lift
X32 Crawler Spider Boom Lift
X36 Crawler Spider Boom Lift
X43 Crawler Spider Boom Lift

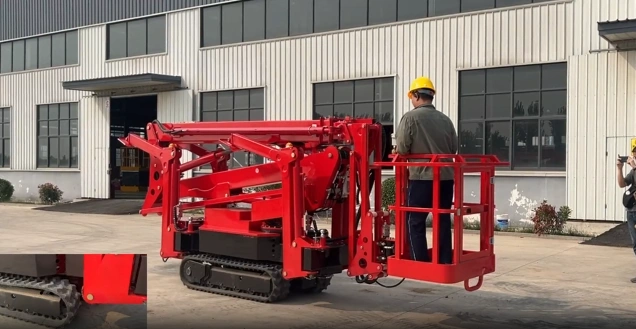

Videos
Features

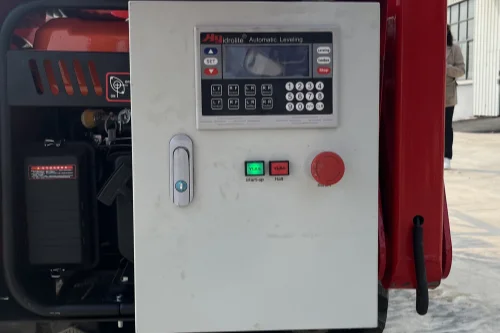

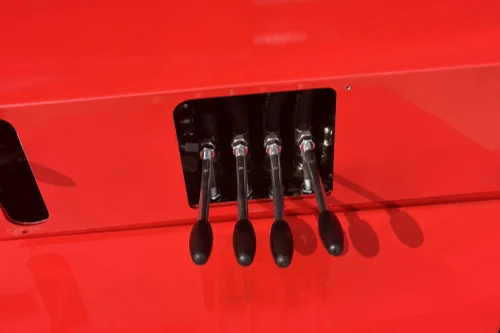

Bottom Control Panel: Features an easy-to-identify operation panel with an advanced integrated control system, providing simple and flexible operation.

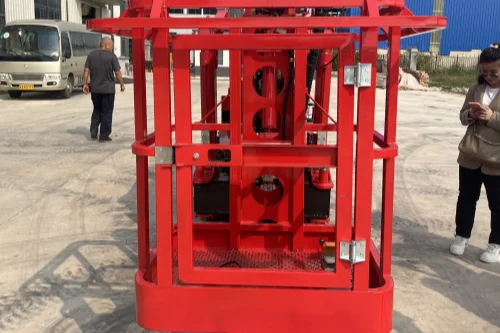

Platform Controller: Equipped with a waterproof and dustproof protective cover for reliable performance in harsh environments.

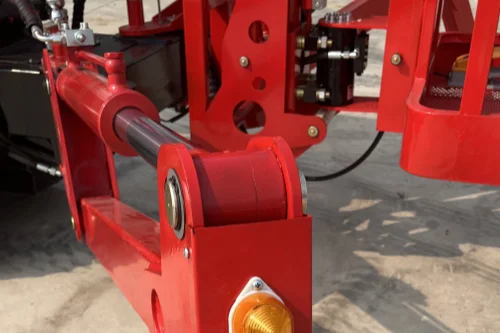

Easy Outrigger Operation: Simplified controls with clear markings make outrigger deployment user-friendly.
Automatic Platform Leveling: Ensures the platform tilt stays within 3°, enhancing safety, stability, and precision during operation.

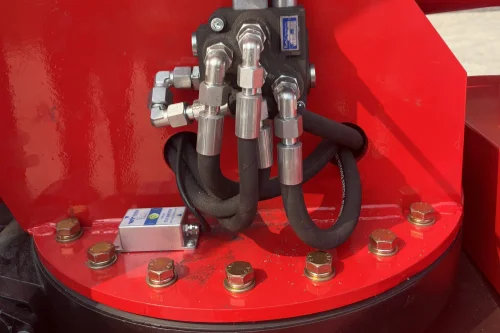

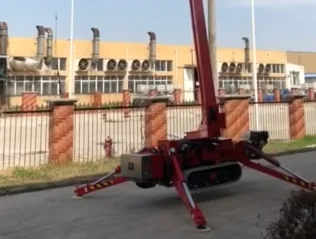

360-Degree Boom Rotation: Ensures smooth and stable movement for flexible operation in different directions.

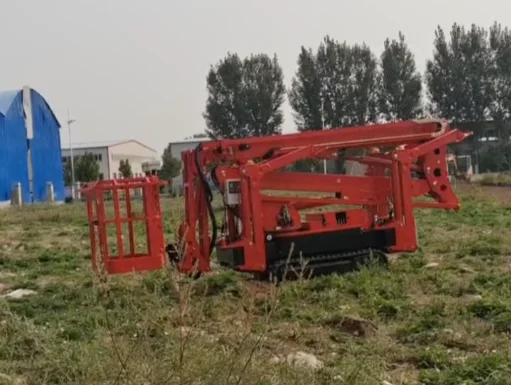

Non-Marking Tracks: The durable rubber track is anti-skid and can walk through uneven terrains;
Specifications
| Parameter | Unit | T23 | T26 | T30 | T36 | T42 | T50 |
|---|---|---|---|---|---|---|---|
| Max. Working Height | m | 23 | 26 | 30 | 36.8 | 42 | 50 |
| Max. Platform Height | m | 21 | 24 | 28 | 34 | 40 | 48 |
| Loading Capacity | kg | 200 | 200 | 200 | 200 | 200 | 200 |
| Lateral Outreach | m | 9.3 | 12 | 12 | 14 | 15 | 18 |
| Rotation of Work Cage | ° | 180° | 180° | 180° | 180° | 180° | 180° |
| Jib Rotation | ° | 180° | 180° | 180° | 180° | 180° | 120° |
| Turntable Rotation | ° | 360° non-continuous | 360° non-continuous | 360° non-continuous | 360° non-continuous | 360° non-continuous | 360° non-continuous |
| Size of Platform | m | 1.2 × 0.8 × 1.1 | 1.2 × 0.8 × 1.1 | 1.2 × 0.8 × 1.1 | 1.2 × 0.8 × 1.1 | 1.2 × 0.8 × 1.1 | 1.2 × 0.8 |
| Overall Stowed Length (A) | m | 6.5 | 6.6 | 7.7 | 8.47 | 8.6 | 8.7 |
| Overall Stowed Width (B) | m | 1.58 | 1.60/1.40 | 1.58 | 1.58 | 2.05/1.65 | 1.58 |
| Overall Stowed Height (C) | m | 1.99 | 2 | 1.99 | 1.99 | 2.05 | 2.5 |
| Total Weight | kg | 3700 | 4350 | 4700 | 5900 | 13000 | 14500 |
| Driving Speed | km/h | 2.2 | 2.2 | 2.2 | 2.2 | 1.5 | 0-2.0 |
| Max. Climbing Ability | % | 30% | 30% | 30% | 30% | / | 30% |
| Power | kW | 12.5 | 12.5 | 18.5 | 18.5 | 18.5 | / |
| Electromotor | V/kW | 220/2.2 | 220/2.2 | 220/2.2 | 220/2.2 | 220/2.2 | 380/7.5 + 36.5 |
| Control Voltage | V | 24 | 24 | 24 | 24 | 24 | / |
| Parameter (Unit) | X16 | X18 | X21 | X24 | X27 | X32 | X36 | X43 |
|---|---|---|---|---|---|---|---|---|
| Max. Working Height | 15.8 m | 18 m | 21 m | 24 m | 27 m | 32 m | 35.5 m | 43 m |
| Max. Platform Height | 13.8 m | 16 m | 19 m | 22 m | 25 m | 30 m | 33.5 m | 41 m |
| Loading Capacity | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg |
| Lateral Outreach | 6.2 m | 7.2 m | 9.5 m | 9 m | 12.5 m | 13.5 m | 14 m | 15 m |
| Rotation of Work Cage | 180° optional | 180° optional | 180° optional | 180° optional | 180° | 180° | 180° | 180° |
| Jib Rotation | 120° | 120° | 180° | 180° | 120° | 180° | 180° | 180° |
| Turntable Rotation | 360° non-continuous | 360° non-continuous | 360° non-continuous | 360° non-continuous | 360° non-continuous | 360° non-continuous | 360° non-continuous | 360° non-continuous |
| Size of Platform | 0.9 × 0.8 × 1.1 m | 0.9 × 0.8 × 1.1 m | 1.2 × 0.8 × 1.1 m | 1.2 × 0.8 × 1.1 m | 1.2 × 0.8 × 1.1 m | 1.2 × 0.8 × 1.1 m | 1.2 × 0.8 × 1.1 m | 1.2 × 0.8 × 1.1 m |
| Overall Stowed Length (A) | 5.16 m | 5.40 m (4.5 m available) | 5.1 m | 5.50 m (4.50 m) | 6.5 m | 7.00 m (6.23 m) | 8.47 m | 8.5 m |
| Overall Stowed Width (B) | 0.92 m (0.79 m available) | 0.79 m | 1 m | 0.80 m / 1.20 m | 0.89 m / 1.20 m | 1.4 m | 1.59 m | 1.59 m |
| Overall Stowed Height (C) | 1.99 m | 1.99 m | 1.99 m | 1.96 m | 1.99 m | 1.99 m | 1.99 m | 1.99 m |
| Total Weight | 1900 kg | 2200 kg | 2900 kg | 3160 kg | 5200 kg | 7220 kg | 7220 kg | 13500 kg |
| Driving Speed | 0-1.5 km/h | 0-2.2 km/h | 0-2.0 km/h | 0-3.0 km/h | 0-2.2 km/h | 0-2.2 km/h | 0-2.2 km/h | 0-2.2 km/h |
| Max. Climbing Ability | 30% | 30% | 30% | 30% | 30% | 30% | 30% | 30% |
| Power | 7.5 kW | 7.5 kW | 10 kW | 14.9 kW | / | / | 44 kW | 44 kW |
| Electromotor | 220V/2.2 kW | 220V/2.2 kW | 220V/2.2 kW | 220V/2.2 kW | / | 220V/2.2 kW | 380V/7.5 kW | 380V/7.5 kW |
| Control Voltage | 12/24 V | 12 V | 12 V | / | / | / | 24 V | 24 V |
