Self-Propelled Electric Scissor Lift

Electric drive delivers more than double the battery life of hydraulic-drive machines.
Available with various working heights and platform capacities, it’s easy to find a mobile scissor lift model to fit the needs of your job site.

Retractable Table

The platform can be extended forward by 90 cm, expanding the working range to handle special processing and operational requirements.

Intelligent Control System

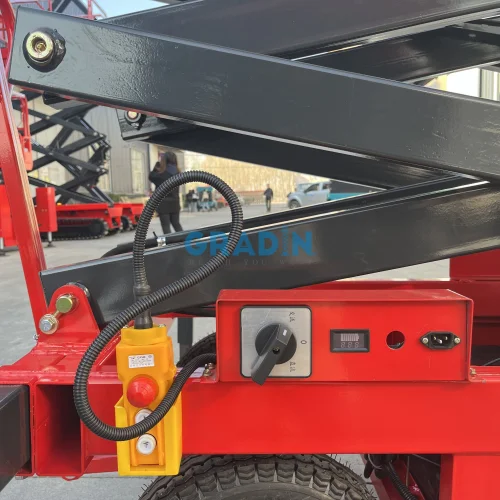

Integrated with a control handle, horn button, and turtle speed switch, the system allows easy lifting and platform movement, providing smooth and simple operation for the user.

Tilt Protection System

An automatic alarm system prevents the lift from operating when unsafe conditions are detected. It protects the safety of the operator and displays fault codes for quick diagnostics.

Pit Protection System

When the lift encounters uneven or bumpy ground, the system adjusts lifting and movement to ensure stability. It also displays fault codes for monitoring safety and operation.

Products

The following models are the main selling models, and customization is also available:

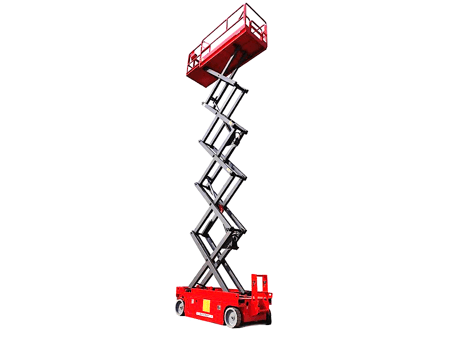

14m Self-Propelled Electric Scissor Lift

14-meter height
Self-Propelled
Rechargeable battery
Load capacity 500 kg
Indoor and outdoor tasks
Safety systems
Quiet and emission-free operation

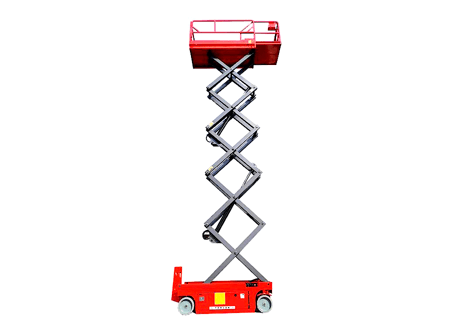

12m Self-Propelled Electric Scissor Lift

12-meter height
Self-Propelled
Rechargeable battery
Load capacity 500 kg
Indoor and outdoor tasks
Safety systems
Quiet and emission-free operation

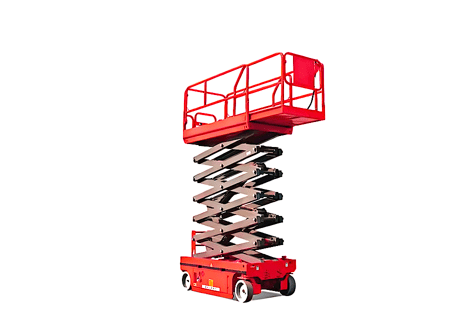

10m Self-Propelled Electric Scissor Lift

10-meter height
Self-Propelled
Rechargeable battery
Load capacity 500 kg
Indoor and outdoor tasks
Safety systems
Quiet and emission-free operation

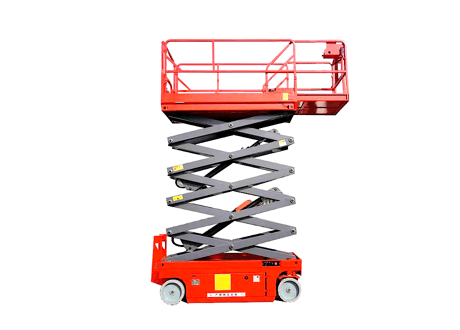

8m Self-Propelled Electric Scissor Lift

8-meter height
Self-Propelled
Rechargeable battery
Load capacity 500 kg
Indoor and outdoor tasks
Safety systems
Quiet and emission-free operation

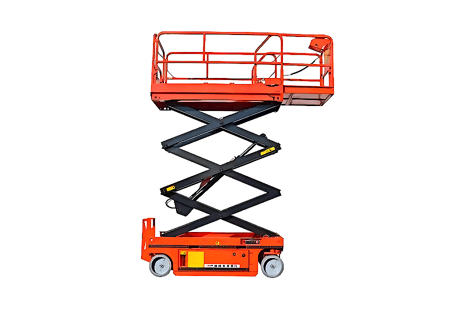

6m Self-Propelled Electric Scissor Lift

6-meter height
Self-Propelled
Rechargeable battery
Load capacity 500 kg
Indoor and outdoor tasks
Safety systems
Quiet and emission-free operation

4m Self-Propelled Electric Scissor Lift

4-meter height
Self-Propelled
Rechargeable battery
Load capacity 500 kg
Indoor and outdoor tasks
Safety systems
Quiet and emission-free operation

Specifications

Model	Platform Size (mm)	Lift Height(m)	Load Capacity (kg)	Folded Dimensions (mm)	Self-weight (kg)
G-SJY0.5-4	2010 × 830	4	500	2016 × 1000 × 1120	670
G-SJY0.5-6	2010 × 830	6	500	2016 × 1000 × 1170	730
G-SJY0.5-6.8	2010 × 830	6.8	500	2016 × 1000 × 1170	780
G-SJY0.5-8	2010 × 830	8	500	2016 × 1000 × 1260	860
G-SJY0.5-9	2010 × 830	9	500	2016 × 1000 × 1480	1080
G-SJY0.5-10	2010 × 1130	10	500	2016 × 1290 × 1540	1300
G-SJY0.3-11	2010 × 1130	11	300	2016 × 1290 × 1660	1400
G-SJY0.5-12	2500 × 1210	12	500	2500 × 1360 × 1780	2050
G-SJY0.5-14	2845 × 1420	14	500	2845 × 1620 × 1895	2540
G-SJY0.3-16	2845 × 1420	16	300	2845 × 1620 × 2055	2700
G-SJY0.3-18	3060 × 1620	18	300	3060 × 1800 × 2120	3900
G-SJY1.0-4	2010 × 1130	4	1000	2016 × 1290 × 1150	1000
G-SJY1.0-6	2010 × 1130	6	1000	2016 × 1290 × 1310	1130
G-SJY1.0-8	2010 × 1130	8	1000	2016 × 1290 × 1420	1380
G-SJY1.0-10	2010 × 1130	10	1000	2016 × 1290 × 1620	1580
G-SJY1.0-12	2462 × 1210	12	1000	2465 × 1360 × 1780	2400
G-SJY1.0-14	2845 × 1420	14	1000	2845 × 1620 × 1895	3000

Optional Accessories

Optional Accessories	Details	Price
DC Lift	Two batteries (up to 11 meters)	Consult for price
	Four batteries (up to 11 meters)	Consult for price
	12-14 meters	Consult for price
	16-18 meters	Consult for price
AC/DC Dual Use	Two batteries (up to 11 meters)	Consult for price
	Four batteries (4-14 meters)	Consult for price
	16-18 meters (includes switch, transformer, charger)	Consult for price
Assisted Walking, Rear Bridge Drive	Two batteries (4-10 meters)	Consult for price
	Four batteries (4-14 meters)	Consult for price
	16-18 meters (without braking)	Consult for price
	16-18 meters (with braking)	Consult for price
Assisted + AC/DC (Rear Bridge Drive)	Two batteries (4-10 meters)	Consult for price
	Four batteries (4-14 meters)	Consult for price
	16-18 meters (without braking)	Consult for price
	16-18 meters (with braking)	Consult for price
Telescopic Platform	8 meters	Consult for price
	10 meters	Consult for price
	12 meters	Consult for price
	16-18 meters	Consult for price
Explosion-proof Motor and Electrical Equipment (no walking)	4-12 meters	Consult for price
	14-18 meters	Consult for price

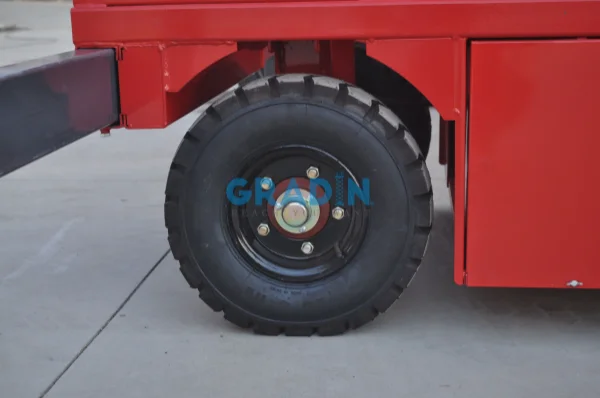

Solid Tires	400 tires	Consult for price
	500 tires	Consult for price
	600/700 tires	Consult for price
Trailer Scissor	4-10 meters	Consult for price
	12-14 meters	Consult for price
Remote Control		Consult for price
Variable Frequency Drive	4-11 meters	Consult for price
	12-18 meters	Consult for price
Color	Custom orders via phone inquiry	Consult for price
