Heavy-Duty Loading Ramps
Rapid Loading and Unloading: Tailored for swift handling of goods, optimizing workflow efficiency.
Versatile Application: Suitable for both indoor and outdoor tasks, ensuring adaptability across various work environments.
Single-Person Operation: Easily operable by a single individual, minimizing labor costs and maximizing productivity.
Direct Container Access: Allows forklifts to directly access containers for efficient loading and unloading without container removal.
Ideal for: Forklifts, logistics terminals, factories, container terminals, and trucks, catering to diverse loading and unloading needs.
Filter
SOLUTIONS BY APPLICATION
WHAT’S YOUR APPLICATION?
Our design library and our engineering capabilities allow us to meet your application challenges. No matter what your challenge is, we’ll build the perfect lift you need.
SOLUTIONS BY INDUSTRY
WHAT’S YOUR INDUSTRY?
We understand industry-specific challenges better than anyone. From aerospace to retail, we are uniquely qualified to understand all of your challenges.
Our Clients
Stationary Loading Ramp
Sectional Loading Ramp
READ MORE
> 6 ton
1 – 3 mW : 1 – 2 mL : 9 – 11 m
Stationary Loading Ramp
READ MORE > 6 ton 1 – 3 mW : 1 – 2 mL : 1 – 3 m
Loading Ramp With Scissor Lift
READ MORE 2 – 3 ton 30˚ – 45˚W : ＞ 6 mL : ＞ 11 m

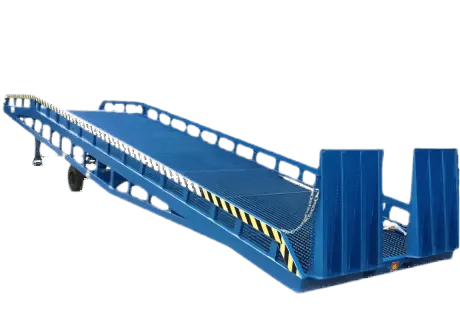

Mobile Loading Ramp
Mobile Loading Ramp
READ MORE > 6 ton 1 – 3 mW : 1 – 2 mL : 9 – 11 m
Mobile Vertical Loading Platform
READ MORE 2 – 3 ton 1 – 3 mW : 1 – 2 mL : 1 – 3 m
Mobile Hydraulic Livestock Loading Ramp
READ MORE ≤ 1 ton ≤ 20°W : CustomizedL : Customized
Features
Diamond anti-slip mesh
Electrical control
Outrigger
tire
8 U-shaped main beams for enhanced durability
Integrated checkered steel plate for enhanced anti-slip functionality
Inverted oil cylinder design to prevent oil passage blockage
Maintenance Prop for enhanced safety
Rear Hinge provides a seamless and soft transition
Standard Dimensions
Stationary Type
| Technical Parameters | DCQG-6T | DCQG-8T | DCQG-10T |
|---|---|---|---|
| Workbench Size (NL x NW) | 2000 x 2000 mm | 2000 x 2500 mm | 2000 x 2000 mm |
| 2000 x 2000 mm | 2000 x 2500 mm | 2000 x 2500 mm | |
| Loading Capacity | 6000 kg | 8000 kg | 8000 kg |
| 10000 kg | 10000 kg | ||
| Tilt Up (A) | 400 mm | 450 mm | 400 mm |
| 450 mm | 450 mm | ||
| Tilt Down (B) | 300 mm | 300 mm | 300 mm |
| Dimensions (NL x NW x LH) | 2000 x 2000 x 600 mm | 2000 x 2500 x 600 mm | 2000 x 2000 x 600 mm |
| 2000 x 2500 x 600 mm | 2000 x 2000 x 600 mm | 2000 x 2500 x 600 mm | |
| Total Weight | 640 kg | 720 kg | 700 kg |
| 800 kg | 710 kg | 830 kg | |
| Power | 1.1 kW | 1.1 kW | 1.1 kW |
Mobile Type
| Model Number | SJDY2-1.7-2 | SDY3-1.7-3 | SDY2-1.7-2 | SJDY3-1.7-3 | SJDY4-1.7-3 |
|---|---|---|---|---|---|
| Table Size (mm) | 1600 × 2000 | 1600 × 2600 | 2000 × 2000 | 2000 × 2000 | 2000 × 2600 |
| Countertop Pattern (mm) | 3 mm | 3.5 mm | 3 mm | 3.5 mm | 3.5 mm |
| Outer Frame | 120 × 60 + 100 × 50 rectangular tube | 120 × 60 rectangular tube | 120 × 60 + 100 × 50 rectangular tube | 120 × 60 rectangular tube | 120 × 60 rectangular tube |
| Tongue Plate, Tail Plate (mm) | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Countertop Holder | 80 × 40 | 80 × 40 | 80 × 40 | 80 × 40 | 80 × 40 |
| Oil Cylinder | 63 × 2 pieces | 63 × 2 pieces | 63 × 2 pieces | 63 × 2 pieces | 63 × 2 pieces |
| Pumping Station | 2.2 kW / 220 V / 50 Hz or 3.0 kW / 380 V / 50 Hz | 4.0 kW / 380 V / 50 Hz | 2.2 kW / 220 V / 50 Hz or 3.0 kW / 380 V / 50 Hz | 4.0 kW / 380 V / 50 Hz | 4.0 kW / 380 V / 50 Hz |
| Chain | 16A high strength chain | 1244 plate chain | 16A high strength chain | 1244 plate chain | 1244 plate chain |
| Thickness (C-type Steel) | 5 mm Q355b | 100 × 100 high strength H steel branch | 5 mm Q355b | 100 × 100 (high strength H steel four pieces) | 100 × 100 high strength H steel branch |
| Rise (mm) | 1700 mm | 1700 mm | 1700 mm | 1700 mm | 1700 mm |
| Weight (kg) | 706 kg | 1100 kg | 740 kg | 1060 kg | 1300 kg |
| Overall Dimensions (mm) | 2250 × 2260 × 2500 | 2360 × 2850 × 2550 | 2650 × 2260 × 2500 | 2760 × 2250 × 2500 | 2760 × 2850 × 2550 |
