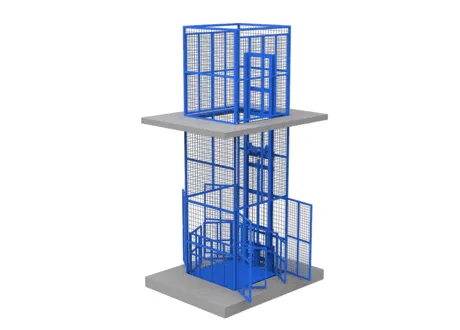

4 Posts Fully-caged Cargo Lift

1-5 tons, up to 8m, Hydraulic, Leaf Chains, Anti-explosion

The Fully-caged Cargo Lift is specifically designed to address material handling challenges, featuring a fully enclosed steel mesh exterior that provides physical protection for both the goods inside and individuals outside. Equipped with landing doors similar to other cargo lifts, its distinctive feature lies in its enhanced safety with the fully enclosed cage. This cargo lift boasts a generous platform size or high capacity, capable of lifting vehicles or forklifts with a maximum weight capacity of 20 tons. This makes it an ideal choice for transporting heavy or specialized goods.

Capacity: 4 – 5 ton

Distance: 7 - 9 m

Width: 2 – 3 m

Length: 1 - 3 m

Models and Specs
Custom Options
Features and Benefits
Case Studies and Videos
Product Documents

4 Posts Fully-caged Cargo Lift

Models & Specs

Model	4 Post Lift\| Mezzanine Goods Lift
Lifting Capacity	1000-5000kg
Platform Size Min.	1500*1800mm
Platform Size Max.	2500*2800mm
Lifting Height	3.2m – 8m
Pit Depth	300mm
Application	Warehouses/Factories/Commercial Buildings

4 Posts Fully-caged Cargo Lift

Custom Options

Customize Your Lifts

Specifically sized, configured, mobile, high-cycle, or automated – when you need a lift to perform a specific function, we have the materials, components, and design techniques to produce a one-of-a-kind lifting solution for your application.

4 Posts Fully-caged Cargo Lift

Features & Benefits

Working Platform

Constructed with checkered steel plate for anti-skid properties, ensuring the safety of operators and goods during operation.

Guide Rails

Made from high-quality Q235 or Q345 H-shaped steel, meeting national standards for precise dimensions, strength, straightness, and minimal welding deformations.

Leaf Chains

Utilizes standard leaf chains 1234 or 1044, offering high strength, minimal stretch, extended service life, and reduced safety risks compared to other chains.

Safety Wire Rope

Equipped with 4 safety wire ropes (diameter 8mm~12mm) to secure the platform in case of chain failure, preventing sudden drops and ensuring operator safety.

Hydraulic Power Unit

Features a compact and lightweight design, yet provides high efficiency, working pressure, and reliability without leaks, ensuring smooth operation.

Hydraulic Cylinder

Designed for heavy-duty performance with smooth operation, capable of handling heavy workloads with durable components and leak-free operation.

Hydraulic Oil Pipe

Utilizes high-pressure pipes with double expanded metal protection, offering resistance to oil, water, and high pressure, along with wear resistance and tensile properties.

Electromagnetic Anti-explosion Valve

Incorporates a mechanical explosion-proof design with an explosion-proof valve in the hydraulic system, ensuring that even if the tube breaks due to external forces, the platform remains secure to prevent sudden drops, enhancing overall safety.
