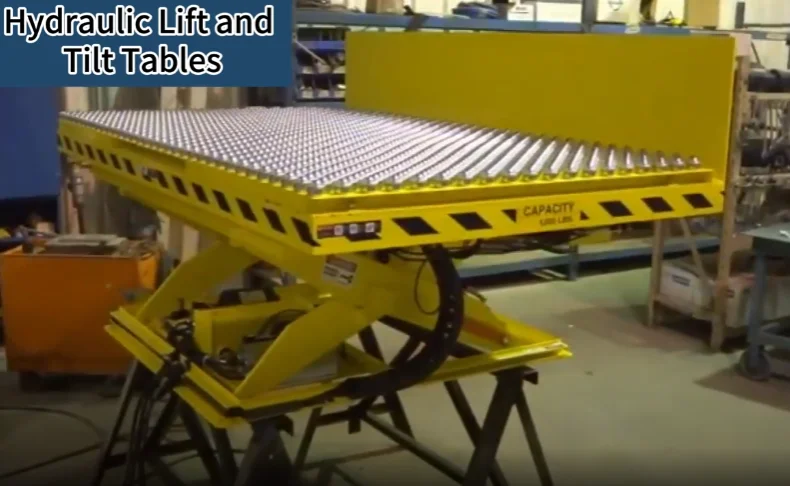

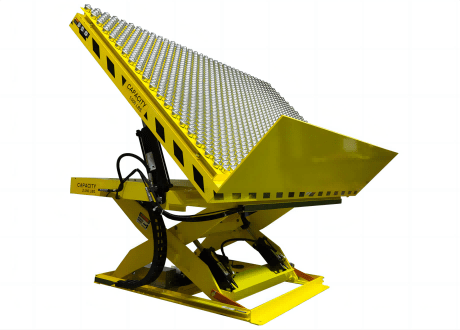

Hydraulic Lift and 45 Degree Tilt Table

Precise control over lift and tilt functions, ensuring optimal positioning of containers and items

Coil upender is major used for turning over the heavy articles from one side to another. It is popular in heavy industries for lessening labor and saving time. What’s more, it also can be worked together with other machines forming into a production line.

Capacity: 1 - 2 ton

Distance: 30˚ - 45˚

Width: 1 - 2 m

Length: 1 - 3 m

Models and Specs
Custom Options
Features and Benefits
Case Studies and Videos
Product Documents

Hydraulic Lift and 45 Degree Tilt Table

Models & Specs

Model	Hydraulic Lift and Tilt Tables
Lifting Capacity	Up to 4000 lbs/1815kg
Platform Size	42″ x 42″/106cm x 106cm ( Can be customized)
Tilt Angle	30˚- 45˚
Mobility Options	Multiple types of powered and unpowered options.
Control Options	Multiple control options to suit any application.
Application	Freight, Industrial, Material Handling

Hydraulic Lift and 45 Degree Tilt Table

Custom Options

Customize Your Lifts

Specifically sized, configured, mobile, high-cycle, or automated – when you need a lift to perform a specific function, we have the materials, components, and design techniques to produce a one-of-a-kind lifting solution for your application.

Hydraulic Lift and 45 Degree Tilt Table

Features & Benefits

Load Restraint Mechanisms

Includes a restraining chain and a 12″ high lip to securely keep the load in place during tilting, ensuring safe handling.

Safety Enhancements

Incorporates various safety features such as an electric toe guard to protect workers from pinch points during table lowering, safety velocity fuses to halt travel in case of hydraulic pressure loss, and an upper limit switch to prevent over-extension, reducing motor wear and maintenance needs.

Control Options

Provides convenient control with a 4 push-button hand pendant control on an 8-foot coil cord, enabling operators to manage the lift and tilt functions effectively from a distance.

Tilt Options

Offers end tilt as standard functionality, with the option for side tilt, providing versatility to accommodate different loading requirements.

Optional Accordion Skirting

Allows for additional customization with optional accordion skirting available for both the lifting and tilting portions of the table, providing further protection and containment, with inquiries directed to the manufacturer.
